2mm Arsenic Removal bifunctional catalyst

I'm Online Chat Now

2mm Arsenic Removal bifunctional catalyst

2mm Arsenic Removal bifunctional catalyst
2mm Arsenic Removal bifunctional catalyst

Large Image :  2mm Arsenic Removal bifunctional catalyst

Product Details:
Place of Origin: china
Brand Name: QD
Certification: ISO9001:2015
Model Number: Dearsenic
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD3000-30000 /Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1000Ton per month

2mm Arsenic Removal bifunctional catalyst

Description
Size: 2-4mm Chemical Composition: MoO3-NiO-Promoter

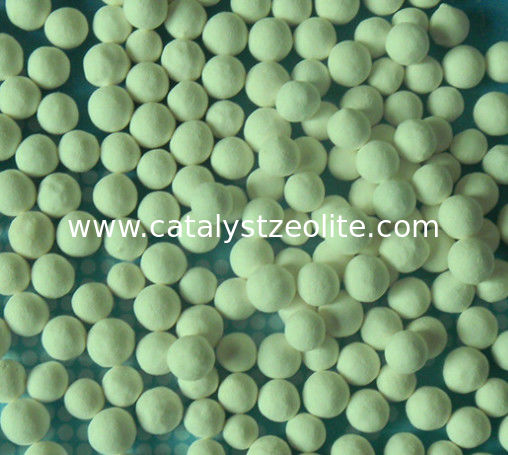

Shape: Yellow Green Sphere Crushing Strength: >50
High Light:

2mm Removal bifunctional catalyst

,

2mm Arsenic Removal catalyst

,

2mm adsorbent media

Reforming pre-dearsenication catalyst

The catalyst is a bifunctional catalyst with good performance.It not only has excellent hydrogenation of arsenic removal and adsorption performance, but also has good organic sulfur hydroconversion abilities, even when arsenic content is to be 17% ,the catalyst still has good hydrodesulfurization activity. We adopt the special process, the catalyst has excellet dearsenication, desulfurization activity of naphtha and other light distillate under the conditions of the space velocity is 12hr-1.

Application: The catalyst is mainly used for dearsenication, desulfurization of light hydrocarbons, such as naphtha, in order to protect subsequent catalyst from poisoning and to some extent mitigate the hydrogenation load.



I. Physical and chemical properties:





Item Index Item Index
Chemical compositions MoO3-NiO-Promoter Crushing strength,N/P,≥ 50
Appearance Yellow green sphere Bulk density,kg/L 0.65-0.75
Particle size,mm (2-4) Surface area m2/g,≥ 200
Pore volume ,ml/g,≥ 0.3 Arsensic pick-up capacity,%,≥ 12.5



II.Operating conditions:





technology parameters Hydrogen partial pressure,Mpa Temperature,°C Space velocity,hr-1

Hydrogen/ oil

V/V

1.6 260-350 5-15 100
feedstock Organic arsenic <1000 ppb,Organic sulfide <500ppm
Activity index de-arsenic rate >99%





Our zeoite and catalyst factory are in follow.

The fixed-bed catalyst production project covers an area of about 5,000 square meters and a building area of 2,000 square meters. It is fully equipped with public works and has more than 40 sets of catalyst production equipment. It has a complete fixed-bed catalyst production system, and the production units that can be carried out mainly include: pretreatment of catalyst raw powder, impregnation, molding, drying/roasting, screening and environmental protection treatment, etc., which can meet the production of various fixed-bed catalysts.







Catalyst Zeolite CO.,LTD factory production line 0

Catalyst Zeolite CO.,LTD factory production line 1

Catalyst Zeolite CO.,LTD factory production line 2

Catalyst Zeolite CO.,LTD factory production line 3

Catalyst Zeolite CO.,LTD factory production line 4
