BET 150 Trilope Hydrotreating Catalyst Extrudates

BET 150 Trilope Hydrotreating Catalyst Extrudates
BET 150 Trilope Hydrotreating Catalyst Extrudates

Large Image :  BET 150 Trilope Hydrotreating Catalyst Extrudates

Product Details:
Place of Origin: china
Brand Name: QD
Certification: ISO9001:2015
Model Number: catalyst
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD3000-30000 /Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1000Ton per month

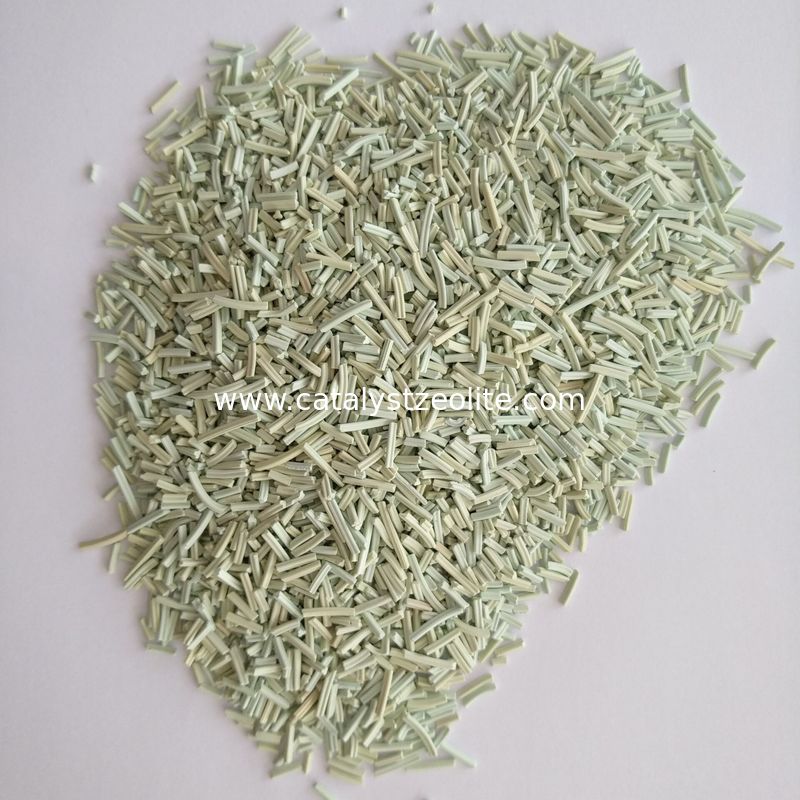

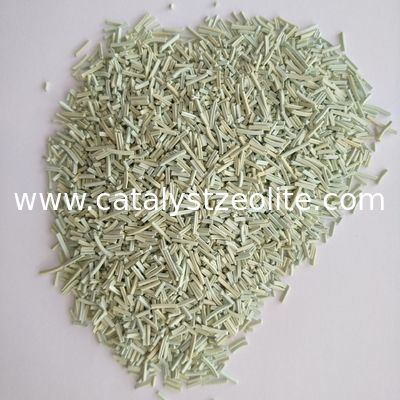

BET 150 Trilope Hydrotreating Catalyst Extrudates

Description
Shape: Trilope Extrudates Size: Ф1.6*5-15
Bulk Density/kg·L-1: 0.8-0.85 BET: 150
High Light:

BET 150 Hydrotreating Catalyst

,

BET 150 Catalyst Extrudates

,

BET 150 hydroprocessing catalysts

HYDROTREATING CATALYST WNS-1

BET 150 Trilope Hydrotreating Catalyst Extrudates 0

It takes promoted alumina as carrier material with such metal components and auxiliaries as tungsten and nickel, featuring good activity of HDS,HDN aromatics saturation and hydrodecolloid in low pressure, and having high resistance to compression and attrition. it can be reused after regeneration. This catalyst contains no easily lapsed active components, so it won't corrode equipment and have good activity stability.
Application: It can be used in the hydrotreating of poor secondary processed gasoline and diesel. under medium and low operating pressure, catalyst WNS-1does very well in hydrotreating all sorts of FCC diesel and coked diesel to produce high quality diesel oil with low sulphur and low aromatics.
Physical-chemical properties

item target Item target
appearance Trilope extrudates Pore volume, ml/g Min0.30
Particle size,mm Ф1.6*5-15 Chemical composition WO3-NiO-promoter-alumina
Crushing strength,N/cm Min 150 Packing density,kg/l 0.80 to 0.85
Surface area,m2/g Min 120



Activity index:

Process parameters Hydrogen partial pressure, Mpa temperature,℃ Space cvelocity,hr-1 Hydrogen to oil raatio,V/V
6.0 360 2.0 800
Raw material Daqing coked diesel
Processed oil dealkaline nitrogen rate min 90%

Reference operating conditions:


Process parameter

Kinds of raw material

Hydrogen partial pressure
(Mpa)
Inlet reaction temperature(℃) Space velocity
(hr-1)
Hydrogen to oil ratio(V/V)
FCC diesel of xinjiang, shenli and guanshu oil 3.0-6.0 260-300 1.0-2.0 400-600
FCC diesel of guanshu oil blending with residue oil 3.0-6.0 270-310 1.0-2.0 400-600
Daqing coked diesel 3.0-6.0 280-320 1.0-2.0 500-800
Shenli coked diesel 6.0 290-330 1.0-1.5 600-800



Packing: iron drums innerlining double-layer plastic bags.
