60N LS-TT-5 High Efficiency Desulphurization Catalyst

I'm Online Chat Now

60N LS-TT-5 High Efficiency Desulphurization Catalyst

60N LS-TT-5 High Efficiency Desulphurization Catalyst
60N LS-TT-5 High Efficiency Desulphurization Catalyst

Large Image :  60N LS-TT-5 High Efficiency Desulphurization Catalyst

Product Details:
Place of Origin: china
Brand Name: QD
Certification: ISO9001:2015
Model Number: catalyst
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD3000-30000 /Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1000Ton per month

60N LS-TT-5 High Efficiency Desulphurization Catalyst

Description
Shape: Brown Bar Size: Φ(4.0±0.3)×(5~15)
Bulk Density, Kg/l: 1.1-1.3 LOI: 6
High Light:

60N desulphurization catalyst

,

60N desulfurizing agent

,

60N Desulfurization Agent

HT-TT-5 High Efficiency Desulfurization Catalyst





1. Trade Name: HT-TT-5 High Efficiency Desulfurization catalyst

2. Chemical in English: HT-TT-5 High Efficiency Desulfurization catalyst

3. HT-TT-5 high efficient desulfurizer main chemical composition of Fe2O3

4. Chemical:Compound

5. Chemical identification: Desulfurizer

6. Chemical Group: Iron (VIII) Oxide



Physical Properties

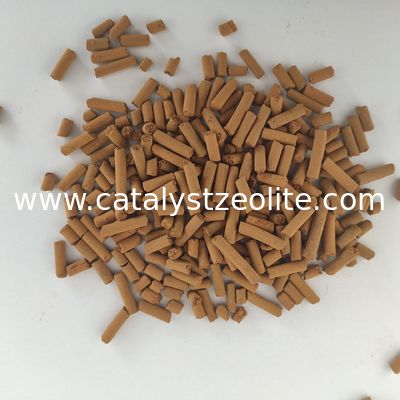

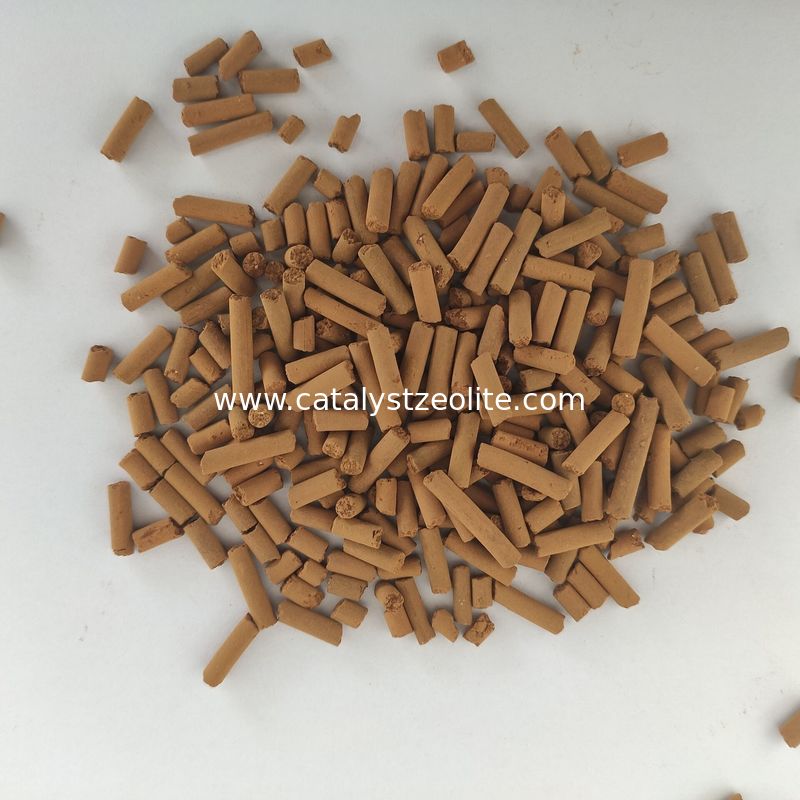

Appearance Brown bar
Particle size /mm Φ(4.0±0.3)×(5~15)
Bulk density / kg·L-1 0.60~0.70
Average radial compressive strength ofparticle /N·cm-1 ≥60
Chemical Composition Fe2O3+ Special additives and enhancers




Product performance

HT-TT-5 desulfurization Media is a new and high efficient solid desulfurization

Media, It uses a new skeleton structure material and consists of hydroxyl group iron

oxide (γ-FeOOH) that is the active composition. The HT-TT-5 desulfurization Media

was produced by special technology and characterized by quick desulfurization speed,high sulfur capacity and impact resistance.



Temperature /℃ room temperature~ 50
Pressure/MPa normal pressure~ 8.0
Gas hourly space velocity / h-1 500~2000
Height-diameter ratio 3~6
H2S concentration (in outlet) / mg·m-3 ≤0.1
Operation Sulfur Capacity ≥15%



Major applications

HT-TT-5 High Efficiency desulfurization Media mainly used to remove H2S from

natural gas, associated gas, syngas, methane, coal gas, coke-oven gas and so on. At

present, the desulphurizer has been widely applied in industry.

Package and Storage

1. It is with double layers woven bags , net weight: 30 kg each bag.(or It is packed

with the ton bag, net weight: (600±5) kg each bag. )

2. In transit, load and handle with care, shall not damage the packing, rain proof.

3. Stored in a cool, low temperature and dry place. There is a three-year product

guarantee period at room temperature.
