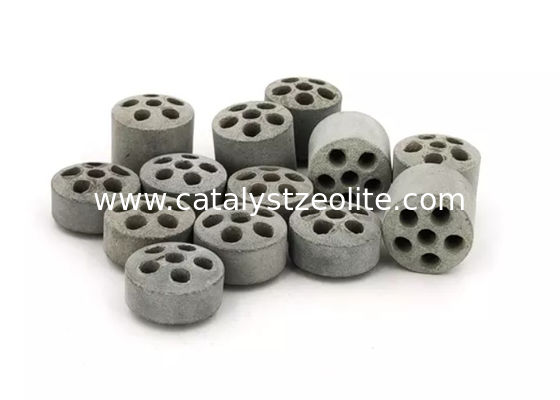

RTS Z118y Tubular Reforming Catalytic Material For Synthesis Ammonia

Large Image : RTS Z118y Tubular Reforming Catalytic Material For Synthesis Ammonia

Product Details:

Place of Origin:	china
Brand Name:	QD
Certification:	ISO9001：2015
Model Number:	shitcatalyst

Payment & Shipping Terms:

Minimum Order Quantity:	1 kg
Price:	USD3000-30000 /Ton
Packaging Details:	25kg/bags or 500kg/bags and carbon
Delivery Time:	5-8days
Payment Terms:	T/T, L/C
Supply Ability:	1000Ton per month

Contact Now

RTS Z118y Tubular Reforming Catalytic Material For Synthesis Ammonia

Description

Size:

16*9*3.5 And 16*16*3.5mm

Bulk Density:

0.9±0.1

Average Strength Before Compression (lateral Compression) (N/cm):

≥360

NiO %:

≥15

High Light:

Z118y Tubular Reforming Catalytic Material

Synthesis Ammonia Reforming Catalytic Material

RTS Z118y Tubular Reforming catalytic Material Suitable For The Primary Reforming Process Of The Synthesis Ammonia

Hydrocarbon First-stage Conversion Catalyst

brand	catalyst zeolite
model	Z118Y
name	Tubular Reforming Catalyst
other names	Hydrocarbon First-stage Conversion Catalyst
usage	The catalyst is suitable for the first conversion section of the synthesis ammonia, methanol or hydrogen production plant from different raw materials such as natural gas, coke oven gas, refinery gas, naphtha, and oilfield associated gas, to convert hydrocarbons and water into H₂, CO, CO₂ Reaction. It is also suitable for ammonia cracking hydrogen production plant.
Conditions of Use	Operating temperature: Inlet temperature 400-600℃ ; output temperature 650-850℃ Operating pressure:0-5.0MPa Water to carbon ratio:2.5-5.0 Carbon space velocity:600-2000h⁻¹ Sulfur content in feed gas≤0.2×10⁻⁶
Appearance	Six-hole arc	Six-hole arc
Size (mm)	Φ16×16×3.5	Φ16×9×3.5
Bulk density (kg/l)	0.9±0.1	0.9±0.1
Average strength before compression (lateral compression) (N/cm)	≥350	≥250
NiO %	≥14.0	≥14.0
SiO₂ %	≤0.2	≤0.2
Burning weight loss %	≤5	≤5
Certification	ISO9001	ISO9001
Performance	Heat resistance: Activity at 800℃ (dry gas CH₄) V %: ≤21 (Z118Y superior product) Activity at 520℃ (dry gas CH₄) V %: ≤64 (Z118Y-1 superior product)
Packaging, Storage and Shipping	Sealed iron drum packaging(50±0.2kg/Barrel). It must be moisture-proof, drop-proof and anti-rolling during transportation. Store in a ventilated and dry room. Products with damaged packaging and unclear labels cannot be used.
Packaging, Storage and Shipping	50Kg	50Kg
Lengthwidthheight of each item (cm)	110110130	110110130
Gross weight of each item (kg)	900kg/tary	900kg/tary
delivery date	1-1000Kg:≤15days ＞1000Kg:To be negotiated	1-1000Kg:≤15days ＞1000Kg:To be negotiated
Sample Price (USD)	$30/Kg
Sample Pack Description	Simple sealed bag packaging
LOGO customization	accept
Outer packaging customization	reject
Pattern customization	reject
