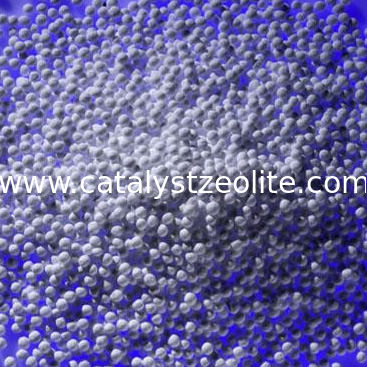

Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier

Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier
Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier

Large Image :  Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier

Product Details:
Place of Origin: china
Brand Name: QD
Certification: ISO9001:2015
Model Number: θ-Al2O3 or α- Al2O3
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD3000-30000 /Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 5000Ton per month

Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier

Description
Material: Gamma Alumina Shape: Microsphere Ball
BET: ≥280m2/g Bulk Density: ≥0.3g/ml
Size: 0.2-0.5 0.4-0.9mm Color: White Microsphere Ball
High Light:

C3 Ebullating Bed Catalyst Carrier

,

C4 Dehydrogenation Catalyst Carrier

,

White Gamma Alumina Catalyst Support

Ebullating bed catalyst carrier Fluidized bed Microsphere catalyst carrier C3 C4 dehydrogenation catalyst carrier

Product introduction
This series of products has the characteristics of good roundness, low wear, and concentrated particle size distribution. The particle size can be adjusted according to the needs of the process. Especially suitable as ebullating bed/fluidized bed C3 and C4 dehydrogenation catalyst carrier.

product name
CZF-01 type ebullating bed/fluidized bed C3, C4 dehydrogenation catalyst carrier

Crystal form
γ-Al2O3 type

Physical and chemical properties
This product is microsphere particles, non-toxic, tasteless and insoluble in water and ethanol.



No.   CZF-01a CZF-01b CZY-01c
1 Particle size D50(μm) 65~85 70~90 80~100
2 Bluk density ABD,g/ml 0.7~0.95 0.75~1.0 0.8~1.05
3 Al2O3(wt%) ≥95 ≥95 ≥95
4 wear rate(%) ≤3.2 ≤3.0 ≤2.5
5 Pore volume(ml/g) ≥0.35 ≥0.35 ≥0.35
6 Specific surface area(m2/g) ≥130 ≥130 ≥125
7 Na2O(wt%) ≤3.0 ≤3.0 ≤3.0
8 Fa2O3(wt%) ≤0.08 ≤0.08 ≤0.08
9 SiO2(wt%) ≤3.0 ≤3.0 ≤3.0
10 Ca(ppm) ≤1000 ≤1000 ≤1000
11 Ti(wt%) ≤0.1 ≤0.1 ≤0.1
12 S(ppm) ≤1000 ≤1000 ≤1000
13 Cl(ppm) ≤500 ≤500 ≤500
14 ≤20μm(wt%) ≤5 ≤5 ≤4.5
15 0~40μm(wt%) ≤20 ≤20 ≤20
16 0~150μm(wt%) ≤92 ≤92 ≤92

catalys@catalystzeolite.com



ZSM-5,Y,β,SAPO zeolite molecular sieve ebullating bed catalyst carrier Fluidized bed Microsphere catalyst carrier



Product name
CZF-03 type molecular sieve carrier for ebullating bed

Crystal form
Molecular sieve crystal forms such as ZSM-5, Y, β, or SAPO zeolite.

Physical and chemical properties
This product is microsphere particles, non-toxic, tasteless and insoluble in water and ethanol.



Product introduction
This series of products is prepared using the spherical molecular sieve molding technology developed by our company and has the characteristics of high molecular sieve content, good sphericity, and high strength. It can prepare ZSM-5, Y, β, SAPO and other molecular sieve/alumina composite carriers with a molecular sieve content within 70%.



catalyst@catalystzeolite.com









No. Item CZF-02a CZF-02b CZY-02c
1 Particle size(mm) 0.2-0.5 0.4-0.9 1.0-1.5
2 Bluk density(g/ml) 0.8 0.65 0.6
3 Molecular sieve content(%) 98 98 98
4 crushing strength(N/pcs) ** ≥5 ≥10
5 wear rate(%) ≤0.3 ≤0.1 ≤0.1
6 Loss on ignition(%) ≤5 ≤5 ≤5
7 Pore volume(ml/g) ≥0.5 ≥0.55 ≥0.6
8 Specific surface area(m2/g) ≥220 ≥220 ≥220
9 Particle size pass rate(%) ≥90 ≥90 ≥95








No. Item CZF-03a CZF-03b CZY-03c
1 Particle size(mm) 0.5-0.9 0.5-0.9 0.5-0.9
2 Bluk density(g/ml) 0.65 0.65 0.65
3 Molecular sieve content(%) 70 60 50
4 crushing strength(N/pcs) ≥5 ≥5 ≥10
5 wear rate(%) ≤0.3 ≤0.1 ≤0.1
6 Loss on ignition(%) ≤5 ≤5 ≤5
7 Pore volume(ml/g) ≥0.3 ≥0.3 ≥0.3
8 Specific surface area(m2/g) ≥300 ≥280 ≥260
9 Particle size pass rate(%) ≥90 ≥90 ≥90



Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier 0



Fluidized Bed Microsphere Catalyst Carrier C3 C4 Dehydrogenation Catalyst Carrier 1
