ADC-946 NiO-Al2O3 Ammonia decomposition catalyst

ADC-946 NiO-Al2O3 Ammonia decomposition catalyst
ADC-946 NiO-Al2O3 Ammonia decomposition catalyst

Large Image :  ADC-946 NiO-Al2O3 Ammonia decomposition catalyst

Product Details:
Place of Origin: china
Brand Name: QD
Certification: ISO9001:2015
Model Number: catalyst
Payment & Shipping Terms:
Minimum Order Quantity: 1 kg
Price: USD3000-30000 /Ton
Packaging Details: 25kg/bags or 500kg/bags and carbon
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1000Ton per month

ADC-946 NiO-Al2O3 Ammonia decomposition catalyst

Description

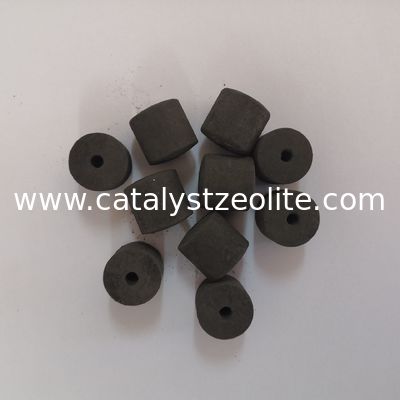

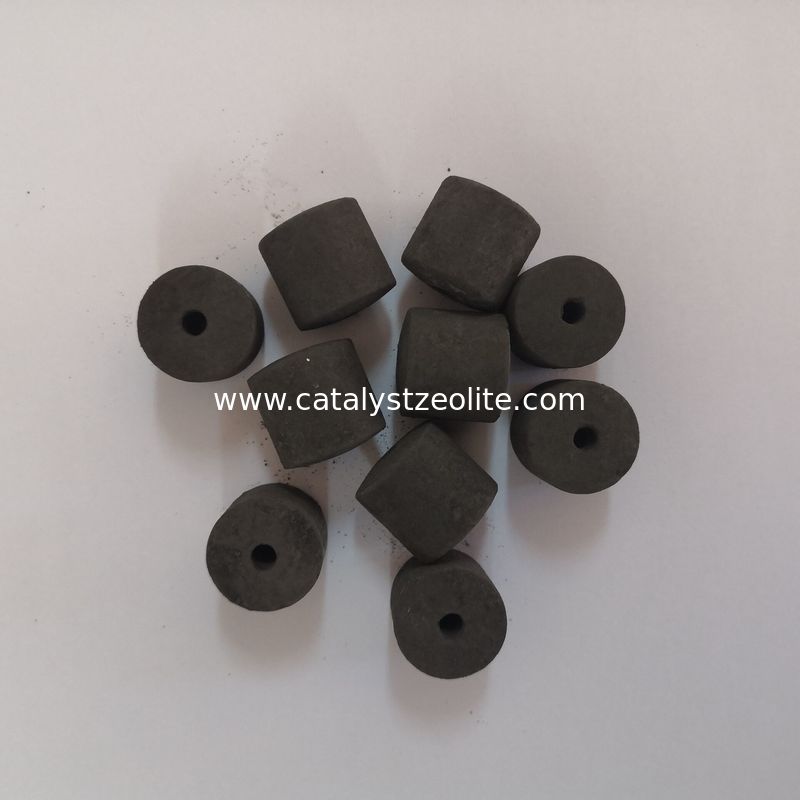

Shape: Gray Black Cylinder With Hole Size: Outer Diameter 19±1,height 20±1 ,pore Diameter3-4
Chemical Properties: NiO-Al2O3 Ni Content:≥%: 6.5
High Light:

Ammonia decomposition catalyst

,

NiO-Al2O3 catalyst

LSAD-946 Ammonia decomposition catalyst

(Heat- Resistance)



ADC-946 Ammonia decomposition catalyst is used for purification in coke oven gas, ammonia decomposition furnace of recovery equipment, and CLAUSE furnace. It makes the NH3, HCN and other noxious gas into N2, H2, CO3, which avoids the environment pollution, and at the same time recovers sulfur. ADC-946 with MgO as carrier, and covering activity component, can stably work in high temperature. Its refractoriness can reach to 1700℃,with high catalytic activity, high- strength , anti-coking ,and anti-poisoning characteristic. It can replace G-117 ammonia catalyst of Germany





Main physical and chemical properties:


Item Unit Index
Appearance   gray black cylinder with hole
size mm outer diameter 19±1,height 20±1 ,pore diameter3-4
Nickel content % ≥6.5
Crushing strength N/particle ≥1000


Normal operating conditions:

Operating temperature ℃ Operating pressure Gas space velocity h-1 NH3decomposition rate (%)
1000-1100 Normal pressure 1000-3000 ≥99
